| Specification | Details |
|---|---|

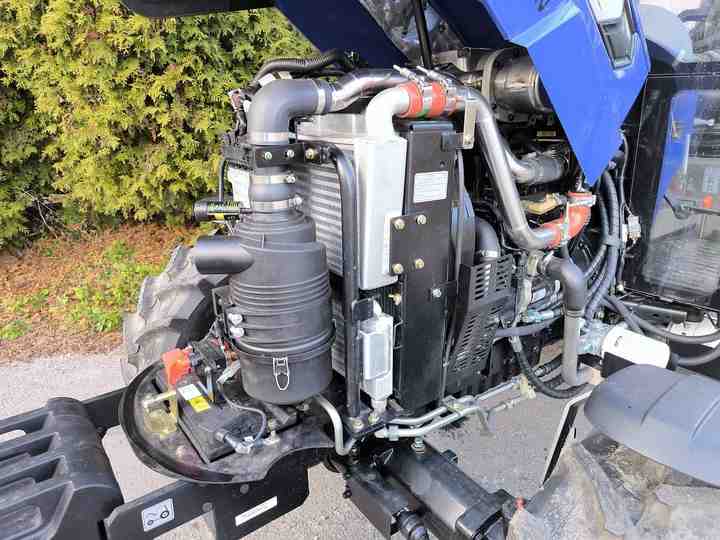

| Engine Model | Doosan D18 (Stage V) |
| Engine Type | 3-cylinder, diesel |
| Displacement | 1.8 L (1800 cc) |
| Power Output | 40 HP (29.4 kW) |
| Maximum Torque | 160 Nm @ 1400 rpm |
| Fuel Tank Capacity | 26 L |
| Transmission | 8 forward / 8 reverse, Synchro Shuttle |
| Clutch | Dry, dual-stage |
| Drive Type | 4WD |
| PTO Speed | 540 / 1000 rpm |
| Rear Lift Capacity | 850 kg (at 610 mm behind hitch point) |
| Three-Point Hitch Category | Category I |
| Hydraulic Output Flow | 16 + 9 L/min |
| Number of Hydraulic Valves | 2 pairs |
| Steering | Hydrostatic |
| Brakes | Wet disc |
| Dimensions (L×W×H) | 3558 × 1550 × 2415 mm (with cab) |
| Wheelbase | 1800 mm |
| Ground Clearance | 270 mm |
| Weight (without ballast) | 1715 kg (with cab) |
| Front Tire Size | 7.5-16 or 260/70R16 |
| Rear Tire Size | 12.4-24 or 320/85R24 |

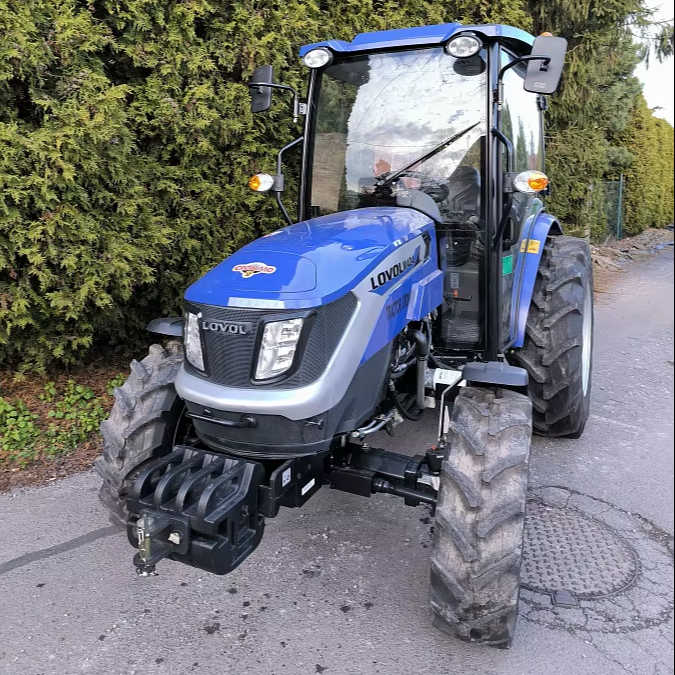

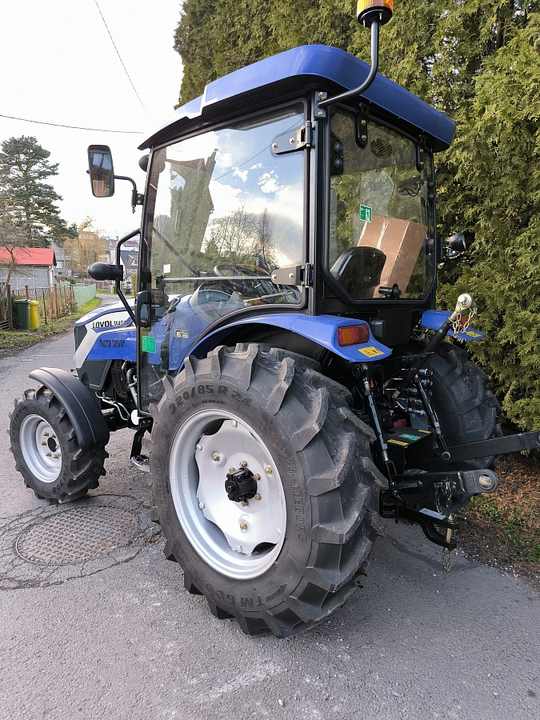

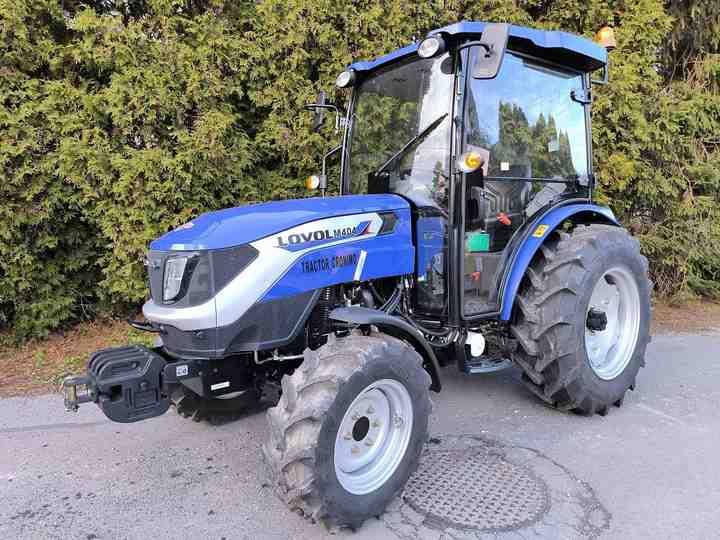

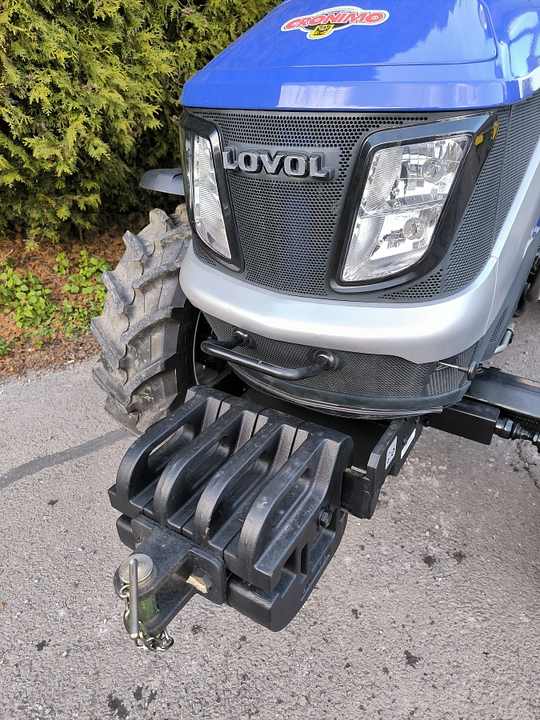

LOVOL M404 4WD Wheel Tractor with Core Components Pump Engine Gearbox
