| Category | Specification |
|---|---|
| Model Year | 2018 |
| Model Number | 299D2 XHP |
| Engine | CAT C3.8 DIT Turbocharged (Tier 4 Final / EU Stage IV) |
| Net Power | 106 HP (79 kW) |
| Gross Power | 110 HP (82 kW) |
| Displacement | 3.8 L (232 in³) |
| Operating Weight | 12,764 lb (5,789 kg) |
| Rated Operating Capacity | 4,340 lb (1,968 kg) |
| Tipping Load | 8,740 lb (3,965 kg) |
| Hydraulic Flow – Standard | 23 GPM (87 L/min) |
| Hydraulic Flow – XHP (High) | 40 GPM (151 L/min) @ 4,061 psi (28,000 kPa) |
| Fuel Tank Capacity | 31.7 gal (120 L) |
| Hydraulic System Capacity | 13.2 gal (50 L) |
| Cooling System | 3.7 gal (14 L) |
| Travel Speed – Low | 5.5 mph (8.9 km/h) |
| Travel Speed – High | 8.5 mph (13.7 km/h) |
| Track Width | 17.7 in (450 mm) |
| Ground Pressure | 4.7 psi (32.4 kPa) |
| Lift Arm Type | Vertical Lift |
| Cab Features | Enclosed cab, HVAC, joystick controls, optional advanced display |
| Standard Bucket Width | 80 in (2,032 mm) |
| Bucket Capacity | 0.58 – 0.62 yd³ (0.44 – 0.47 m³), general purpose |
| Overall Length (with bucket) | 153.4 in (3,897 mm) |
| Length without Bucket | 123.9 in (3,147 mm) |
| Width (over tracks) | 78 in (1,981 mm) |
| Height to Top of Cab | 83.1 in (2,111 mm) |
| Maximum Lift Height | 131.1 in (3,330 mm) |
| Dump Angle at Max Height | 51° |
| Dump Reach at Max Height | 32 in (813 mm) |
| Turning Radius (rear) | 70.9 in (1,801 mm) |
| Ground Clearance | 9.6 in (244 mm) |
| Departure Angle | 33° |

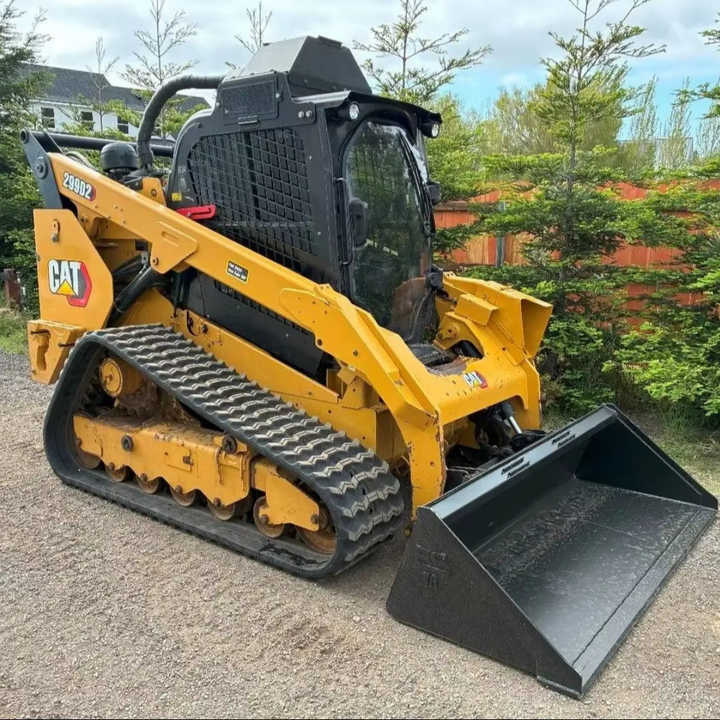

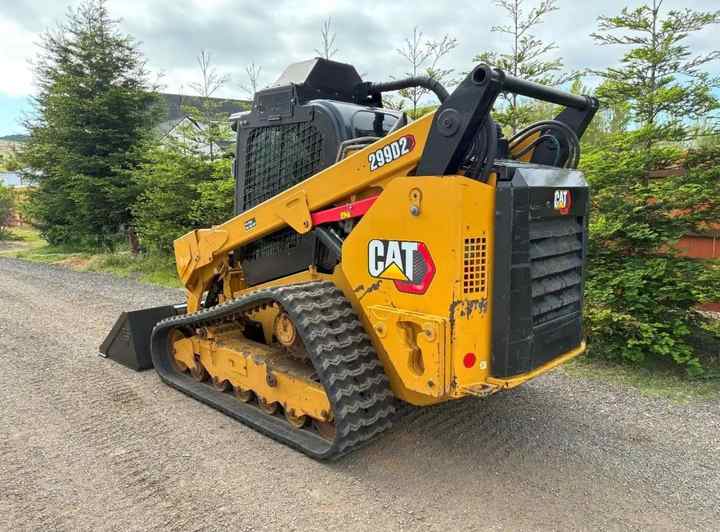

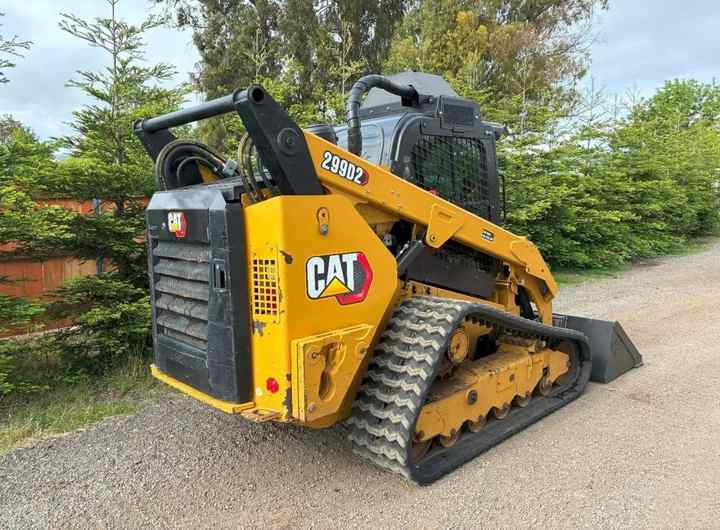

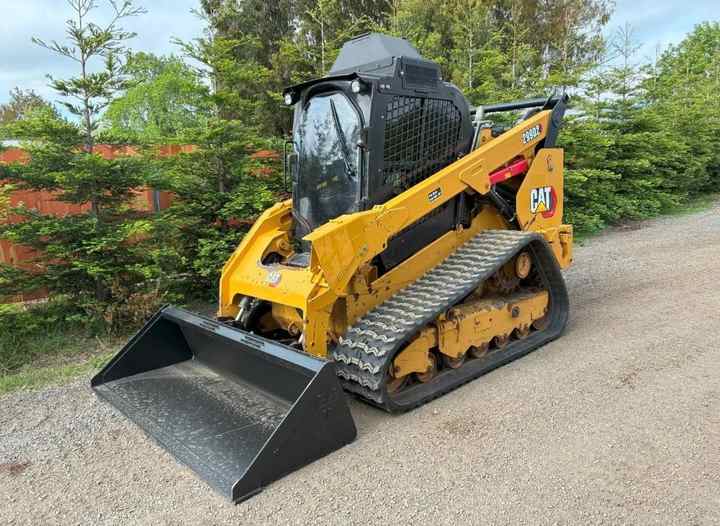

2018 for Caterpillar 299D2 XHP Mini Skid Steer Loader Used Wheel Loader 4 Ton Payload Capacity Bucket Backhoe Loader Attachments
